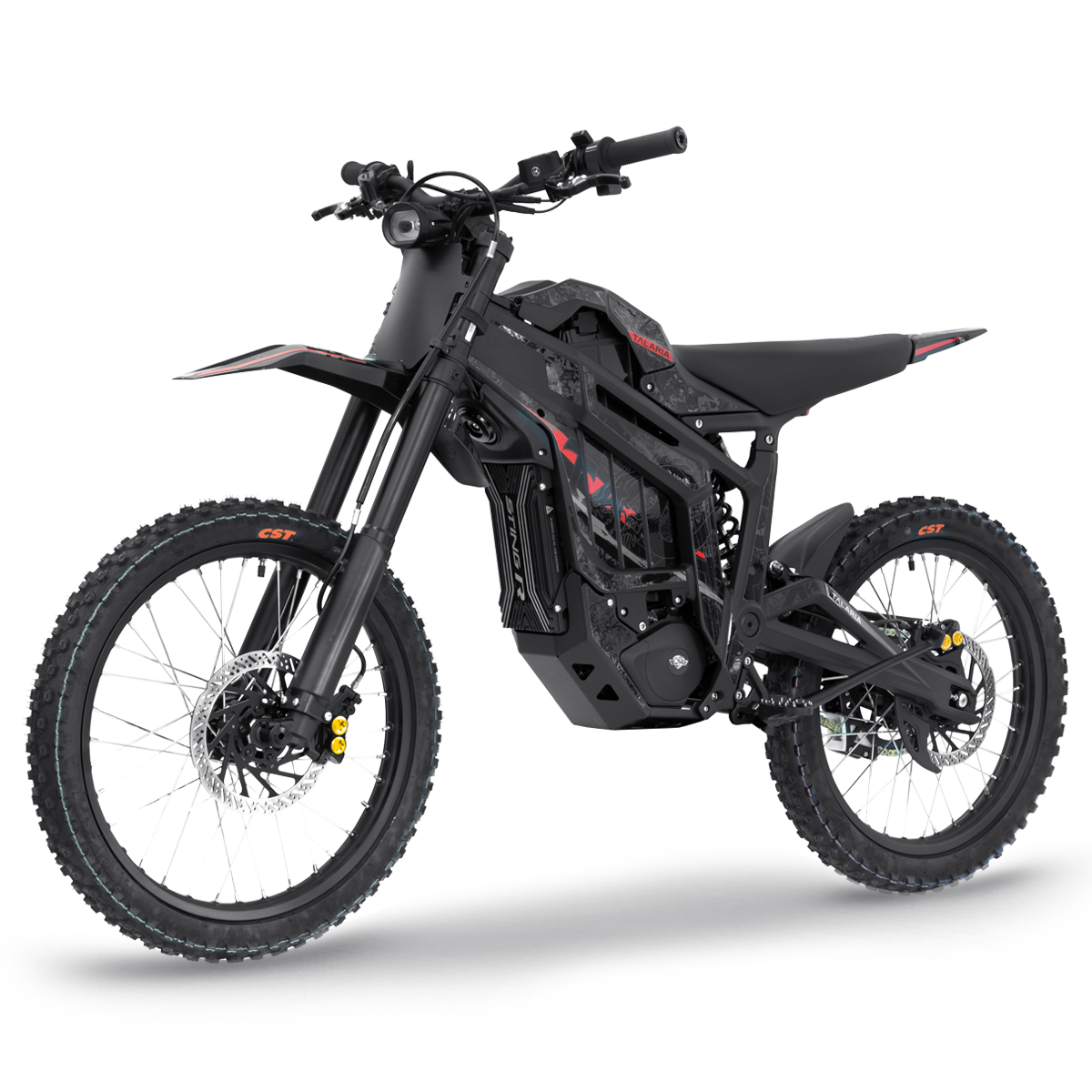

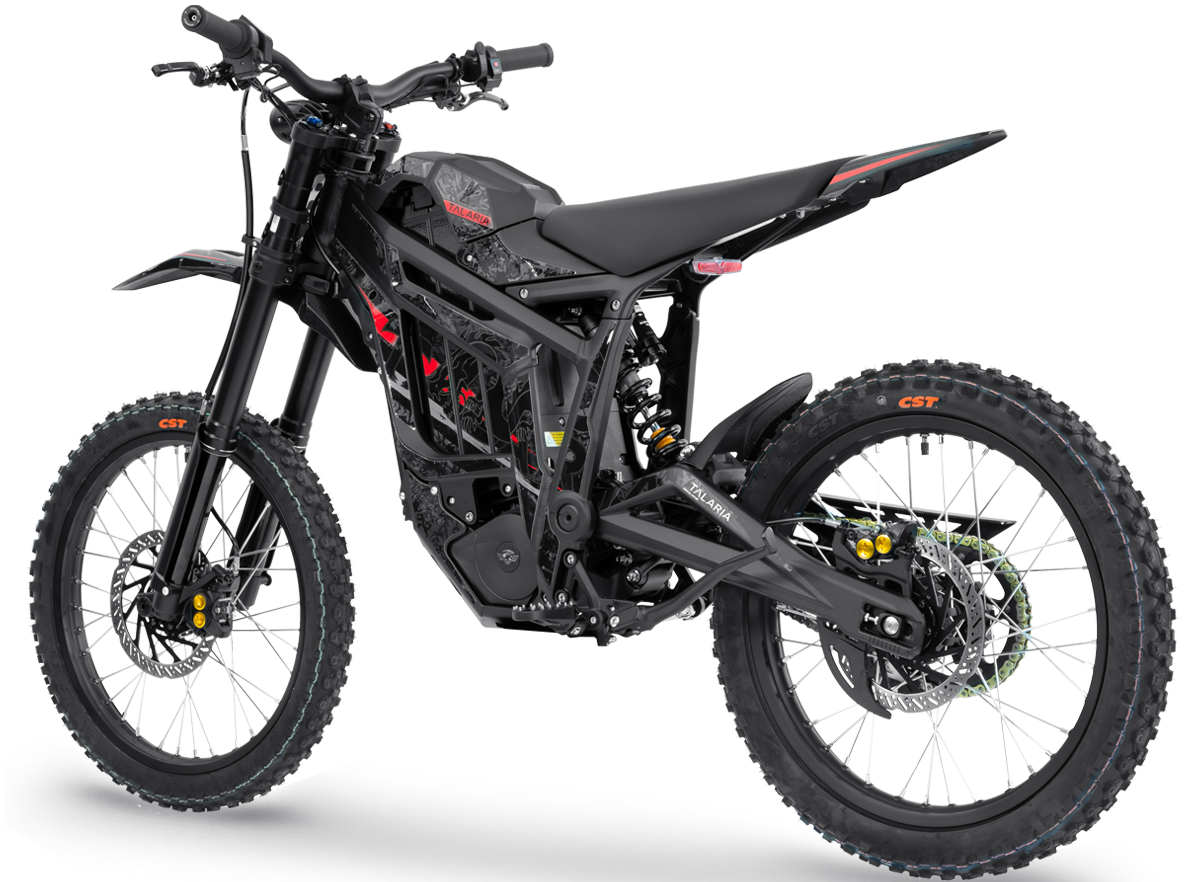

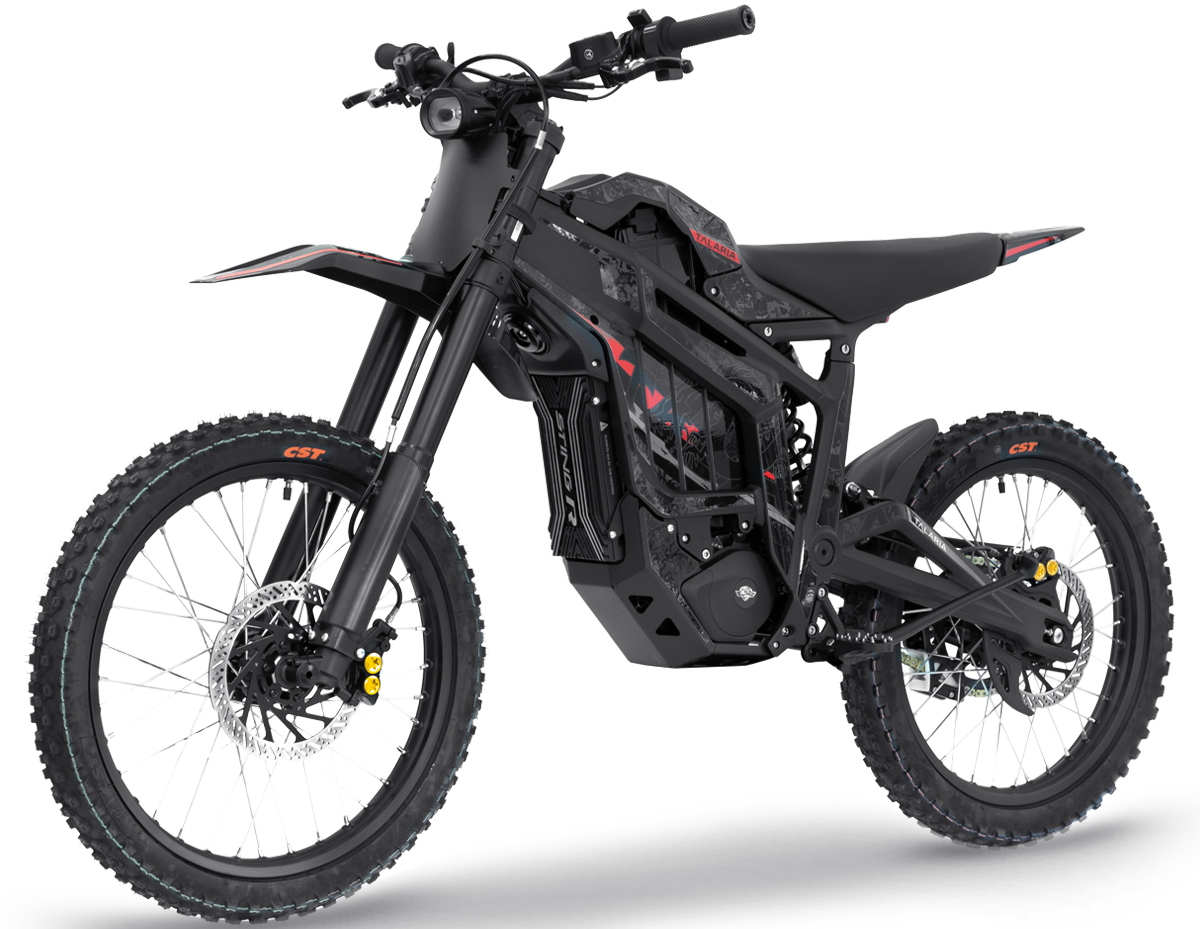

TALARIA MX5
The Talaria MX5 also boasts powerful moto-spec brakes, three riding modes (including a high-performance “hyper” mode), four levels of regenerative braking, a color TFT display, and much more. The Talaria line’s characteristics include a powerful IPM motor and a clever gearbox that give immediate torque and silent operation.
With amazing high-spec features and a reasonable MSRP, the Talaria Sting MX5 Pro is the answer for riders looking for the pinnacle of electric lightweight off-road performance.
TALARIA STING MX5 HIGHLIGHT
Talaria Sting MX5 Pro – UNRIVALED Power & Performance
- KEY FEATURES
- 72V 40Ah battery with Samsung 50S cells (2,880 WH)
- Improved braking power (220x3mm disc brakes, larger calipers & DOT redesigned master cylinders)
- Adjustable air & double spring suspension tuned for optimal off-road performance (improved over MX4)
- 3 riding modes including hyper performance mode (unique to the MX5)
- CNC machined black footpegs
- Colour TFT Display
- Straight-pull CNC machined wheel hubs with reinforced spokes
- Regenerative braking (including regenerative brake lever)
- Headlight switch
- Internal reinforced gearbox for quiet, reliable power (no more worn out or snapped belts)
VEHICLE SPECIFICATIONS
- Chassis Material: 6061 T4 & T6 aluminium alloy
- Process Method: Forged under 6,000 tonnes of pressure
- Surface Method: Anodizing
- Headlight: LED
- Front Fork: Adjustable air + dual spring (220mm travel)
- Rear Shock: Adjustable 85mm travel with linkage
- Wheel Size: 1.4×19 in. front / 1.6×19 in. rear
- Tires: FR 70/100-19 / RR 80/100-19 off-road tires
- Max Range: 100 km @ 25 km/h (62 miles @ 15 mph)
- Net Weight: 76 kg (159 lbs) with battery
- Vehicle Dimensions: 1,880 x 770 x 1,088mm (74 x 30.3 x 42.8 in)
- Seat Height: 840mm (33.1 in)
- Wheelbase: 1,250mm (49.2 in)
- Handlebar Length: 760mm (29.9 in)
- Ground Clearance: 300mm (11.8 in)
- Max Climbing Angle: 45°
- Max Recommended Load: 100 kg (220 lbs)
- Brakes: Hydraulic FR/RR improved 4-pistons
- Brake Disc: 220mm x 3mm
POWER
- Nominal Voltage: 72V (DC)
- Maximum Speed: Factory limited to 32 km/h (20 mph)
- Torque: 500N.m (428 48T sprocket)
- Rated Power: 5.5 kw (Unrestricted)
- Peak Power: 13.4 kw (Unrestricted)
- Power Mode: Eco / Sport / Hyper
ELECTRONIC
- Battery Pack: 72V 40AH
- Battery Cells: Samsung 50S
- Display: TFT – Speed, battery level, voltage, odometer
- Regenerative Braking: 4-level adjustment + regenerative brake lever
MOTOR
- Motor type: DC IPM
- Mounting Position: Mid-mounted
- Motor Cooling: Air-cooled
TRANSMISSION
- Primary Transmission: Gearbox
- Drive Transmission: 418-108T Chain
- Rear Sprocket: 48T
WARRANTY
ONE-YEAR limited warranty
When a part or accessory is found to be defective during routine use and maintenance, Talaria will cover the full cost of materials for repair or replacement. The original retail buyer is the only one covered by this limited warranty. This limited guarantee is in effect for a full year following the date of the new Talaria model’s original retail sale from an authorized dealer.
Compliance: The TALARIA MX5 PRO Off-Road Electric Dirt Bike is sold for off-road use only. It is speed- and power-limited to comply with applicable federal, state, and local laws. Do not bypass these restrictions or modify the unit to increase speed or power. The buyer is solely responsible for proper use and for ensuring compliance with all laws in the region where the product is operated.
